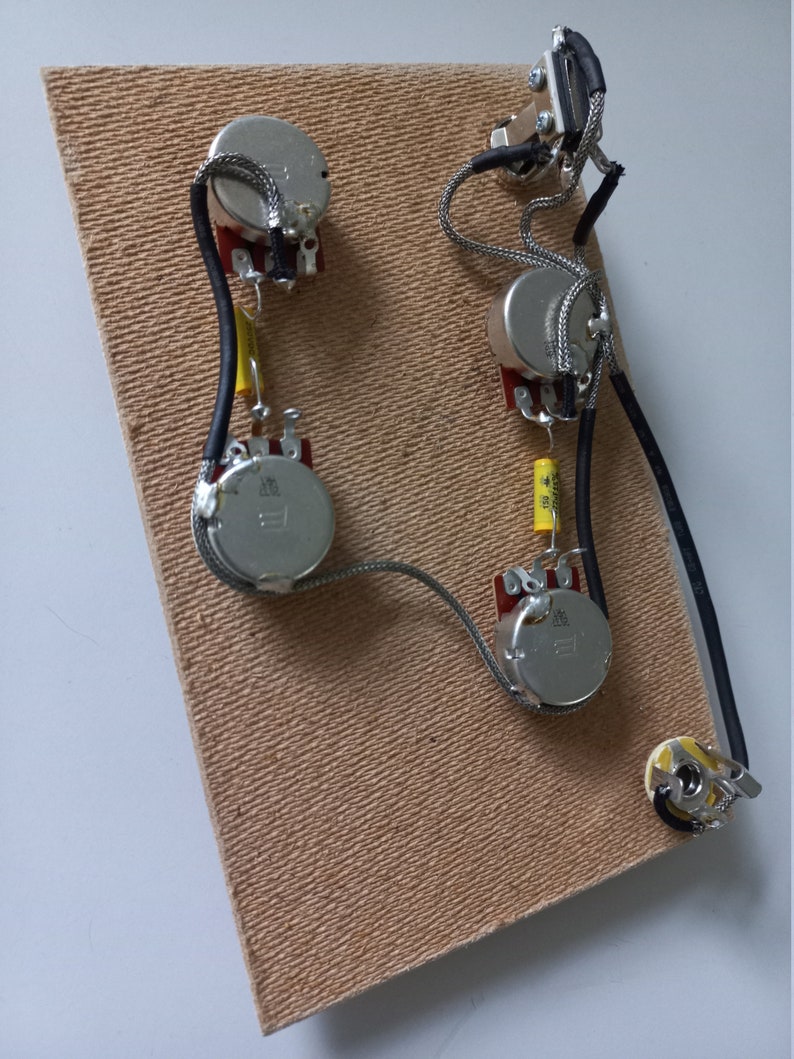

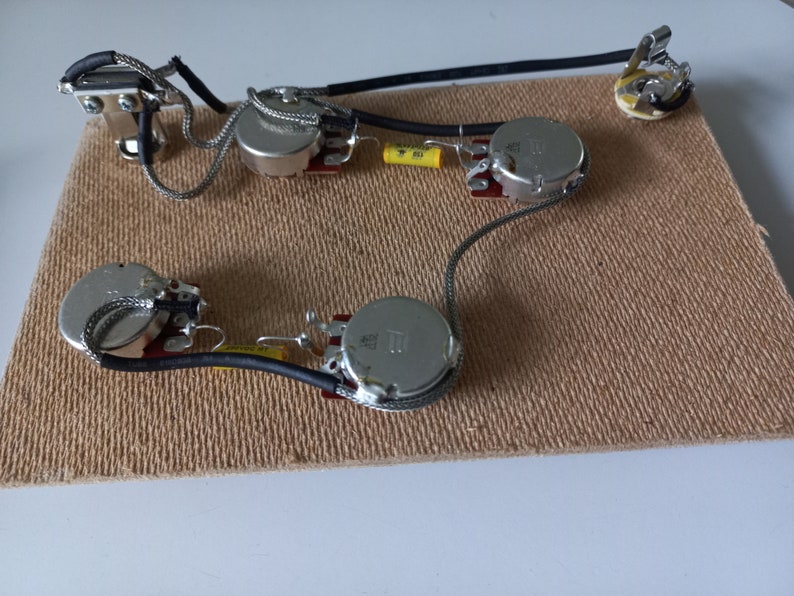

This listing is for a standard hollow body drop-in replacement wiring for an ES335 style guitar.

Very high quality wiring using
Alpha guitar pots, split shaft 18 knurles
Switchcraft toggle
Vintage style braided cloth wire
Audio grade foil capacitors
Rean jack

Potentiometers are 500k audio pots, split shaft with 18 knurles. This is for metric knobs, mostly found on guitars built in Asia and Europe.
Works for Epriphone, Squier, Aria, Westone, non-USA Ibanez……
When in doubt if you have 18 or 24 please contact me.

Some guitars, like Epiphone Sheraton, have small F-holes and big pots do not fit through. In that case choose small pots instead.

The threaded parts of the pots are imperial: hole diameter 3/8" (9.5mm) so you need to ream the holes in the guitar from 9 to 10mm.

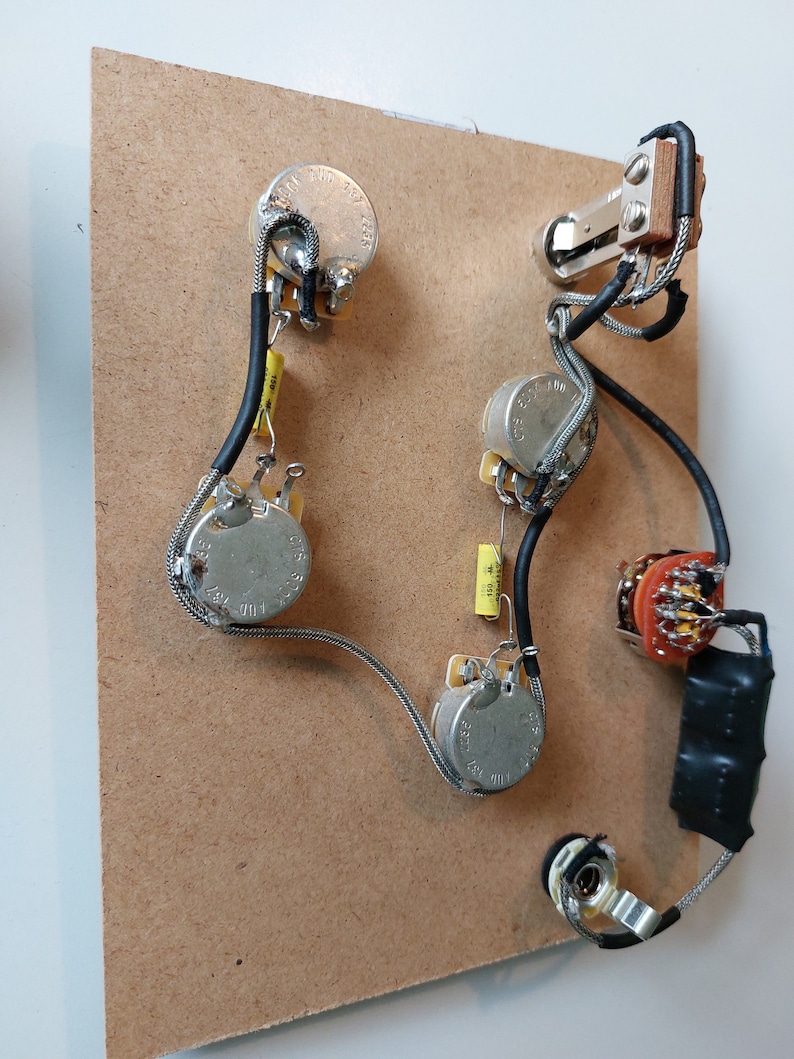

For coil splitting or out of phase wiring push-pull pots can be used. Contact me for options.

CUSTOM ORDERS:

If you are unsure if this wiring will fit your imported or hand-crafted hollow body please contact me.

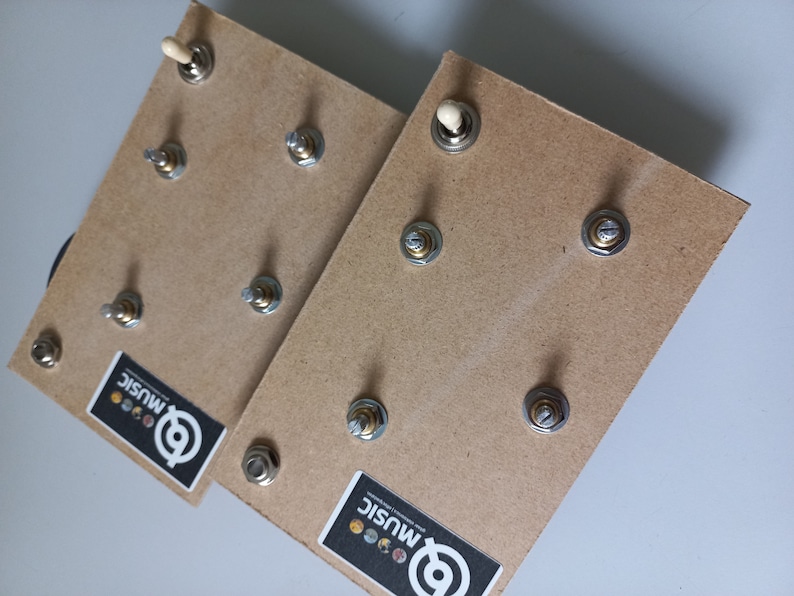

The positioning of the pots and switches can differ between brands.
I can usually make a custom wiring at no additional cost if you send me measurements.
I do, however, not have pots with metric thread, so if the holes for the pots are smaller than 3/8 inch (9.5mm) you need to make them
bigger using a reamer or a drill. (be careful when drilling, best leave it to a luthier or carpenter)

Standard tone cap value is 22nF.
For less dark tone control 15nF or 10nF can be used, darker sounds can be obtained with 33 or 47nF.
